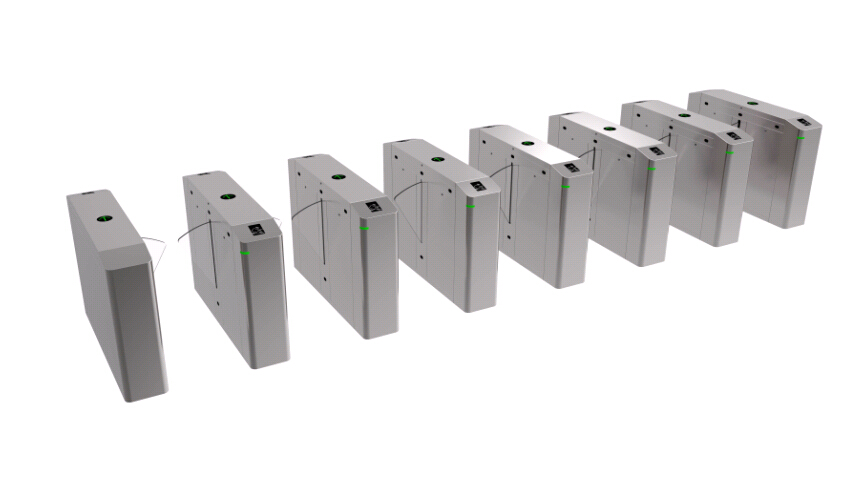

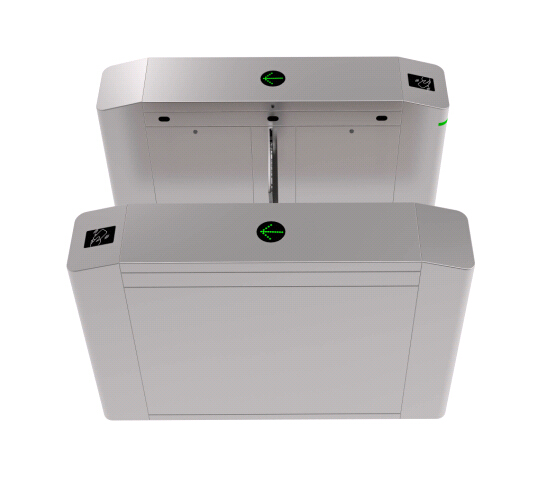

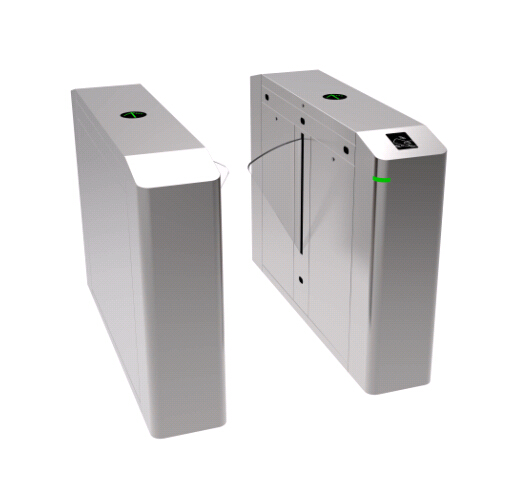

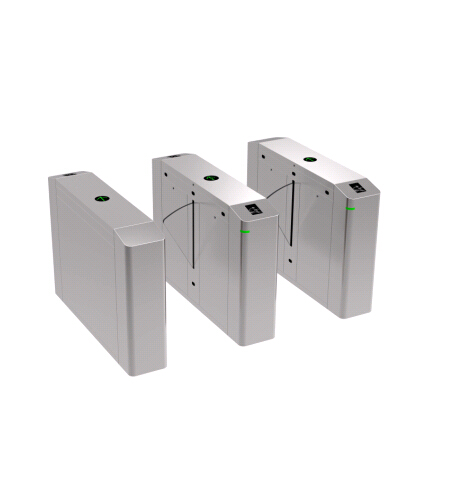

yyjsz1819CJ-DB248-H Stainless Steel Automatic Flap
All flap barrier are space efficient security barriers,
with a compact design, yet offer sufficient space to
integrate any access control system. They can be
mounted with display, passage counter, card reader,
token operation, traffic lights, command console,
alarm system against unauthorised entries, interfaced
with a PC through a RS232(RS485,TCP-IP) line. The unique swing arm feature provides a fail-safe safety solution in case of an emergency or power failure,
providing egress in case of crisis evacuations.
Durability with minimal maintenance means years and millions
of trouble free passages.
The turnstile creates a secure environment in, for example,
a reception area.
Our turnstiles are used in applications including stadiums
and arenas,
perimeter and interior security, recreation and amusement
parks, retail crowd control, transit fare collection and lobby
access control.
Features:
1. 304 stainless steel;
2. steel cut by laser;
3. The least welding portion polished properly;
4. Original finish kept;
5. Infrared Anti-clipping function;
6. Violent/illegal access infrared alarm;
7. Bidirectional access alarm;
8. N.W: Single mechanism:85kg
Specification
1.Size: 1200*280*980mm;
2.Unlock time: 0.2s ;
3.Throughput rate: <=35person/minute;
4.pass width:<=550mm;
5.Input: 220V,50HZ;
6.Operation voltage: 24v
7.Working Temperature: -25DC~+70DC;
8.Power comsuption:32W;
9.drive-signal input: dry contact;
10. Thickness: 1.00mm
Anti-clipping function,photocell anti-, clipping and mechanical anti-clipping
Auto re-set fuction,if no passing during identified card-reading time ,the system will reset automatically the passengers
Auto re-set fuction,if no passing during identified card-reading time ,the system will reset automatically the passengers
are prohibited to pass until their second identified reading
The barrier can be set to delay closing in 1~60s after valid card-reading
IN GENERAL
Use IC cards,ID cards,Bar code or magnetic cards as automatic
The barrier can be set to delay closing in 1~60s after valid card-reading
IN GENERAL
Use IC cards,ID cards,Bar code or magnetic cards as automatic
identification system and achieve access,attendance fees or function
A direction indicator, showed that pedestrian access to the current
A direction indicator, showed that pedestrian access to the current
status of,and guide pedestians correct and smooth passage
Didplay has been in use for statistics and numbers
With voice and strobe light alerts
A combination of infrared sensors and police anti-illegal entry into pedestrian access,the protection of pedestians
Didplay has been in use for statistics and numbers
With voice and strobe light alerts
A combination of infrared sensors and police anti-illegal entry into pedestrian access,the protection of pedestians
smooth and the prevention of the channel following
OPERATING MOOES
Single passage in the set direction
Bi-directional single passage
Free passage in the set direction
Always free or locked
MATERIALS
Housing:Made in metal sheet and painted with 20/10,
OPERATING MOOES
Single passage in the set direction
Bi-directional single passage
Free passage in the set direction
Always free or locked
MATERIALS
Housing:Made in metal sheet and painted with 20/10,
or in stainless steel ALSL 304 o AISI316
Barrier swings-Plastic plate,thoughened glass,stainless steel frame
Lid(optional)—stainless steel or artificial stone(black/brown)
COULOURS & FINISHES
High quality power coating plus lacquered finish
Dark grey colour high quality power coating plus lacquered finish
Sandpaper powder coating with pearl mica effect
Mechanism
Heavy-duty design for 24 hours continous application
Heavy duty pull type
Indoor or outdoor application
High durability with industrial parts
All the running is quiet without any noise and shock
Communication
Dry contact relay with 12 volt or 24 volt pulse
RS485 or TCP-IP communication with computer
High durability with industrial parts
All running is quiet without any noise & shock
Motor
Three million times or above test for motor
Overheat and overload dual protection for motor
Barrier swings-Plastic plate,thoughened glass,stainless steel frame
Lid(optional)—stainless steel or artificial stone(black/brown)
COULOURS & FINISHES
High quality power coating plus lacquered finish
Dark grey colour high quality power coating plus lacquered finish
Sandpaper powder coating with pearl mica effect
Mechanism
Heavy-duty design for 24 hours continous application
Heavy duty pull type
Indoor or outdoor application
High durability with industrial parts
All the running is quiet without any noise and shock
Communication
Dry contact relay with 12 volt or 24 volt pulse
RS485 or TCP-IP communication with computer
High durability with industrial parts
All running is quiet without any noise & shock
Motor
Three million times or above test for motor
Overheat and overload dual protection for motor
