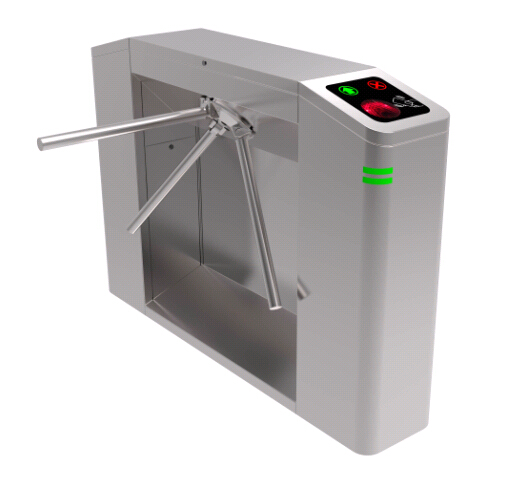

CJ-DBC149 High Quality Automatic arm drop Tripod Turnstile Gate

All turnstile models are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. They can be mounted with display, passage counter, card reader, token operation, traffic lights, command console, alarm system against unauthorised entries, interfaced with a PC through a RS232 line. The unique dropping arm feature provides a fail-safe safety solution in case of an emergency or power failure, providing egress in case of crisis evacuations. Durability with minimal maintenance means years and millions of trouble free passages. The turnstile creates a secure environment in, for example, a reception area. Our turnstiles are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control.



Features:



 1. 304 stainless steel;
 2. steel cut by laser;
 3. The least welding portion polished properly;                                                4. Original finish kept;
 5. Automatic arm drop;
 6. N.W: 75.00kg

Specification

1.Size: 1400*280*980mm;
2.Unlock time: 0.2s ;
3.Throughput rate: <=35person/minute;
 4.pass width:<=550mm;
5.Input: 220V,50HZ;
6.Operation voltage: 24v
7.Working Temperature: -25DC~+70DC;
8.Power comsuption:32W;
9.drive-signal input: dry contact;





Controller

  • Semi-auto mode: After reading card , the passenger pushes the arm by hand untill he goes through the barriers and the arm arrives in home position
  • Full-auto mode: The passenger pushes the arm at a little strength after reading card, and the arm will automatically rotate forward by motor power untill the arm arrives in home position
  • Pure mechanical mode: The passenger pushes the arm by hand untill he goes through the barriers
  • Mono or bi-directional function in mechanical and electrical versions
  • Automatic reset of barrier arms after each passage
  • Cable or wireless remote control panel key override control for emergency situations or tripod turnstiles can be supplied with anti-panic folding arms, without any special keys or tools, the anti-panic folding arms provide free passage in emergency situations. Under normal conditions they function as standard barrier arms
  • Adjustable time out delay.



Operating modes

  • Single passage in the set direction
  • Bi-directional single passage
  • Free passage in the set direction
  • Always free
  • Always locked



Materials

  • Housing: Made in metal sheet and painted with 20/lO , or in stainless steel AISI 304 o AISI316.
  • Barrier arms stainless steel, anti-panic arms (optional) stainless steel
  • Lid (optional) stainless steel or artificial stone (black / brown)



Colours and Finishes

  • high quality powder coating plus lacquered finish
  • Dark grey colour high quality powder coating plus lacquered finish
  • Sandpaper powder coating with pearl mica effect



Mechanism

  • Heavy-duty design for 24 hours continuous application
  • Heavy duty pull type solenoid
  • indoor or outdoor application
  • High durability with industrial parts
  • All the running is quiet without any noise and shaking



Communication

  • Dry contact relay
  • 12 volt or 24 volt pulse relay



Electro-magnetic drive

  • Three million times or above operation test for electro-magnetic drive
  • Overheat and overload dual protection for electro-magnetic drive



Others

  • The arm rotation sensors track passages through the turnstile to ensure accurate count inputs to access control systems for reports
  • high flow rate
  • Fixed arms or electrically lowered
