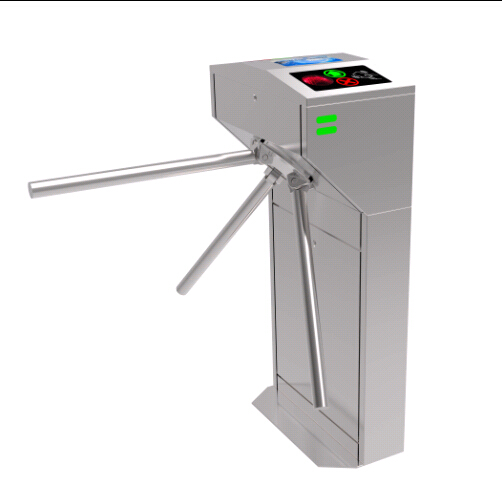

yyjsz1819CJ-DB145 304 Stainless Steel Tripod Turnstile Gate
All turnstile models are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. They can be mounted with display, passage counter, card reader, token operation, traffic lights, command console, alarm system against unauthorised entries, interfaced with a PC through a RS232 line. The unique dropping arm feature provides a fail-safe safety solution in case of an emergency or power failure, providing egress in case of crisis evacuations. Durability with minimal maintenance means years and millions of trouble free passages. The turnstile creates a secure environment in, for example, a reception area. Our turnstiles are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control.
|
Technical Data |
Unit |
CJ-DBL145 |
|
Passage width |
mm |
550 |
|
Throughput rate |
p/m |
40 |
|
Power supply |
V(ac) |
220~240 |
|
Operational voltage |
V(dc) |
24 |
|
Max power consumption |
w |
32 |
|
Frequency |
hz |
50~60 |
|
Prectection level |
ip |
44 |
|
Working temperature |
|
-25~+70 |
|
Electro-magnetic drive |
|
DC |
|
Dimension excluding bars |
mm |
280x480x980 |
|
Net weight including bars |
kg |
44 |
Controller
-
Semi-auto mode: After reading card , the passenger pushes the arm by hand untill he goes through the barriers and the arm arrives in home position
-
Full-auto mode: The passenger pushes the arm at a little strength after reading card, and the arm will automatically rotate forward by motor power untill the arm arrives in home position
-
Pure mechanical mode: The passenger pushes the arm by hand untill he goes through the barriers
-
Mono or bi-directional function in mechanical and electrical versions
-
Automatic reset of barrier arms after each passage
-
Cable or wireless remote control panel key override control for emergency situations or tripod turnstiles can be supplied with anti-panic folding arms, without any special keys or tools, the anti-panic folding arms provide free passage in emergency situations. Under normal conditions they function as standard barrier arms
-
Adjustable time out delay.
Operating modes
-
Single passage in the set direction
-
Bi-directional single passage
-
Free passage in the set direction
-
Always free
-
Always locked
Materials
-
Housing: Made in metal sheet and painted with 20/lO , or in stainless steel AISI 304 o AISI316.
-
Barrier arms stainless steel, anti-panic arms (optional) stainless steel
-
Lid (optional) stainless steel or artificial stone (black / brown)
Colours and Finishes
-
high quality powder coating plus lacquered finish
-
Dark grey colour high quality powder coating plus lacquered finish
-
Sandpaper powder coating with pearl mica effect
Mechanism
-
Heavy-duty design for 24 hours continuous application
-
Heavy duty pull type solenoid
-
indoor or outdoor application
-
High durability with industrial parts
-
All the running is quiet without any noise and shaking
Communication
-
Dry contact relay
-
12 volt or 24 volt pulse relay
Electro-magnetic drive
-
Three million times or above operation test for electro-magnetic drive
-
Overheat and overload dual protection for electro-magnetic drive
Others
-
The arm rotation sensors track passages through the turnstile to ensure accurate count inputs to access control systems for reports
-
high flow rate
-
Fixed arms or electrically lowered
