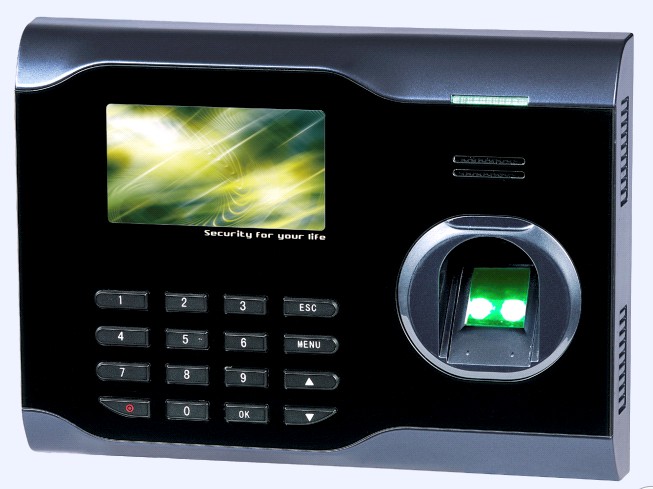

U160-C Biometric Fingerprint Reader & Time Attendance

Introduction:

U160-C is an innovative biometric fingerprint reader for Time & Attendance applications,

offering unparalleled performance using an advanced algorithm for reliability,

precision and excellent matching speed.

The U160-C features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality optical fingerprint sensor. The 3” TFT can display more information vividly,

 including fingerprint image quality and verification result etc.

TCP/IP communication is standard and make sure the data

transmission between terminal and PC can be easily done within several seconds.

Features:

Color TFT screen with GUI Interface for ease of use

ZK Optical Sensor

1 touch a-second user recognition

Stores 3,000 templates and 100,000 transactions

Reads Fingerprint and/or PINs

Optional integrated proximity or smart card reader

Built-in Serial and Ethernet ports

Built-in USB port allows for manual data transfer when network isn't available

Multi Language Support

Built in bell scheduling

Real-time 1-touch data export 3rd party hosted & non-hosted applications

Audio-Visual indications for acceptance and rejection of valid/invalid fingers

SDK available for OEM customers and software developers

Specifications:

Fingerprint Capacity

3000 templates

Transaction Capacity

100,000

Hardware Platform

ZEM510

Sensor

ZK Optical Sensor

Algorithm Version

ZK Finger v10.0

Communication

RS232/485, TCP/IP,USB-host, USB-client

Standard Functions

Webserver, Workcode, SMS, DLST, Scheduled-bell, Self-Service Query, Automatic Status Switch

Optional Functions

ID/Mifare/HID,RIS,printer,9 digit user ID

Display

3 inches TFT Screen

Power Supply

5V DC 2A

Operating Temperature

0 ℃- 45 ℃

Operating Humidity

20%-80%

Dimension

190X140X46 mm

Gross Weight

1.05 kg

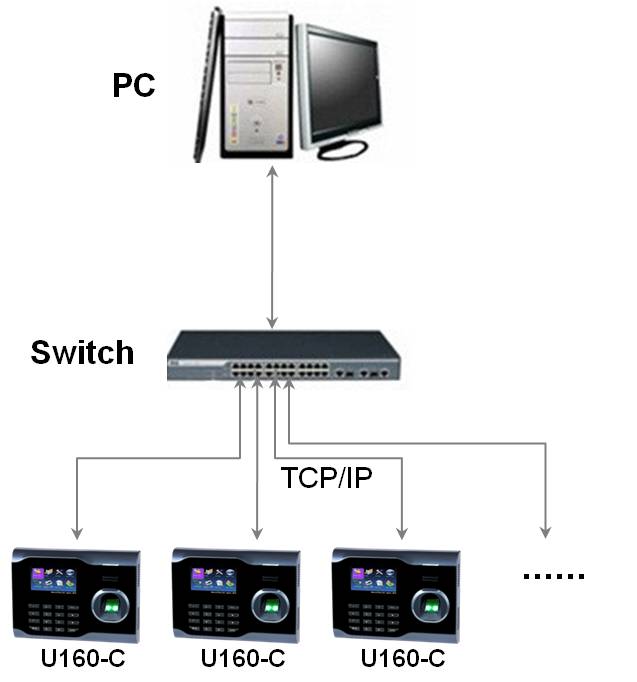

Connection Diagram:
