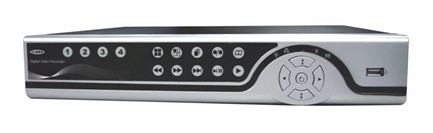

H.264 4CH Standalone DVR
Model: CJ-DVR804A
Function:
1. Advance H.264 technology offers highly compressed file size capability for maximum recording time.
2. GUI interface function that can be operated from front panel /mouse /remote controller.
3. Multi motion detection areas
4. Max. 120 fps real-time recording frame.
5. Pentaplex function support: Recording/ Backup/ Playback/ Network and Mobile Surveillance simultaneously.
6. Support 4 audio inputs and 4 video inputs synchronously.
7. Remote backup and playback via IE browser.
8. Support Host USB backup
9. Auto copy video player on to storage device during backup process.
10. Up to 720x480 D1 recording resolution.
11 .Independent channel setting on recording fps, resolution, contrast, and brightness.
12. Smart recording schedule setup for each channel
13. Adjustable XGA resolution output setting.
14. Single channel or multi-channel video backup capability.
15. Max. 16 channels connection via IE browser
16. Independent time duration setup of each backup file.
17. Email notification when alarm is triggered.
Specification
Item |
Description | ||
Video System |
NTSC/PAL | ||
Operating System |
Embedded Linux | ||
VGA output |
D-SUB 15P VGA | ||
Video Input |
4 x(1Vp-p 75Ω) BNC | ||
Audio Input |
4 x RCA | ||
Video Output |
1 x (Monitor Out) BNC | ||
Audio Output |
1 x RCA | ||
OSD interface |
GUI interface、Multi-Language | ||
Display Frame |
NTSC |
Max.120fps | |
PAL |
Max.100fps | ||
Recording Frame |
NTSC |
Max.120fps | |
PAL |
Max.100fps | ||
Display Mode |
Single / Quad / 9 channel / Single Channel Switch | ||
Pentaplex Mode |
Recording / Playback / Network / Mobile Phone Surveillance | ||
Resolution |
Display |
NTSC |
720 x 480 |
PAL |
720 x 576 | ||
|
Recording |
NTSC |
|
PAL |
|||
Compression |
H.264 |
Normal | |
High | |||
Highest | |||
HDD |
SATA HDD x 2PCS (Max.) | ||
Media Backup |
Host USB 2.0 | ||
Searching |
Mode |
Time/Date, Event | |
Full Screen |
Yes | ||
Alarm Input / Output |
4 x Input / 2 x Output | ||
Key / LED |
25 Keys (Max.) / 4 LEDs | ||
Motion Detection(MD) |
Yes | ||
Video Loss Detection |
Yes | ||
Switching |
Yes | ||
Buzzer |
Yes | ||
Brightness Setting |
Yes | ||
Contrast |
Yes | ||
VGA Output |
Adjustable, 1440p x 900p (max.) | ||
Mouse |
Yes (USB 1.1) | ||
Extending IR Lead |
Yes (Optional) | ||
P/T/Z Control |
Pelco-D / Pelco-P ( RS-485) | ||
Watchdog |
Auto Power Recovery | ||
Networking |
H.264 (STATIC,DHCP,PPPoE) | ||
Mobile Phone |
JPEG ( Java ) | ||
Power supply |
DC 12V / 4A(AC100V~240V 50/60HZ) | ||
Dimension |
350.2mm x 335.5mm x 62mm (L x W x H) | ||
Operating Temperature |
0℃~ 46℃ | ||
Weight |
2.83kg ( without HDD and Power Adapter) |
