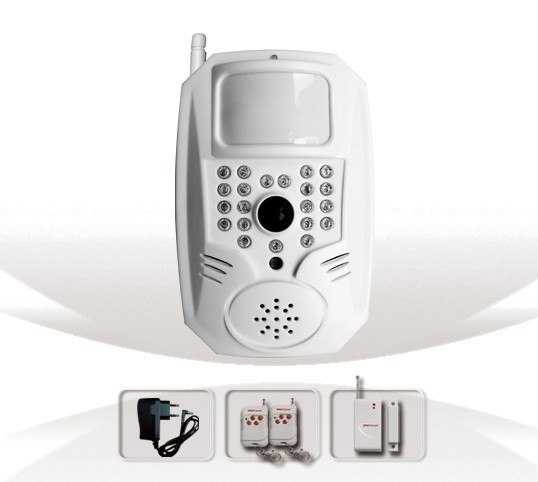

3G Video Alarm with PIR & SD



Model: CJ-818M8B 3G Video Alarm with PIR & SD


Main Functions

1 Support WCDMA/HSDPA/GSM/GPRS/EDGE working model.

2 Built-in 2,000,000 pixels night vision camera, suitable for night use.

3 Support PIR motion detecting, can take photos once trigged alarm.

4 Send scene photos(MMS) to user phone/ e-mail address/IP address.

5 Support video/MMS/SMS/voice call/video phone/e-mail/IP network to alarm.

6 SMS content of each zone can be edited.

7 Support 2GB SD Card to storage image and video.

8 Image size: UXGA (1600×1200),video size: QVGA(320×240).

9 16 wireless zones, each can be programmed independently, eg: arm, disarm and 24-hour arm.

10 Can dial to 5 user phones and 1 monitor center and 1 SMS center when alarming.

11 Set the time of reporting, timing report to monitor center.

12 Supports GPS positioning, applied to automotive systems.(optional)



1 Frequency: WCDMA/HSDPA: 850/1900/2100 MHz
                   EDGE/GPRS/GSM: 850/900/1800/1900 MHz

2 Wireless sensor receiver: ASK

3 Wireless Frequency: 315/433 MHz

4 Wireless Baud rate: 500-2500bps

5 Wireless sensor supported: 16 pcs

7 Wireless Remote working distance: 80m

8 Camera Definition: 2000K pixels

9 Video format: 3gp

9 View angle: 100° (level), 60°(plumb)

10 Night vision distance: 8~10 m

11 Lithium battery capacity: 800mAh

12 Battery life for standby: 24 hours

13 Working temperature: -10℃~+45℃

14 Humidity: 10-90%

15 Power adapter: Input100V~240V/50Hz  Output DC 5..0V/2A

16 Camera Dimension: 130×90×40mm (Lx W x H)

17 Weight : 0.8kg
