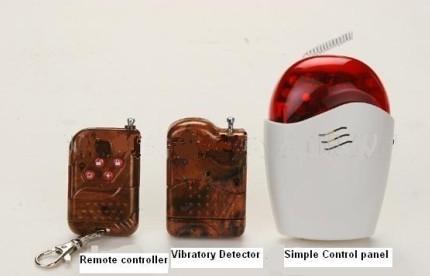

Model: CJ-802 Facilitated Vibration-PIR Alarm System

Functions and Special Features

Simple operation, bright flashing alarm light, clear settings display.

One key operation to learn new codes, once an address code is acquired, other address codes can be programmed accordingly, for example if data edit code is set to vibration detector, then this alarm has intelligent function.

High decibel siren, with both delayed activation and deactivation functions.

Plug and play, no special setup, can be used as alarm host or wireless alarm signal.

Settings protection during power outage.

Specifications

1 Power supply: AC220V

2 Work frequency: 315HM

3 Alarm sound: ≥120db

4 Static current: 10MA

5 Alarm current: ≤200MA(siren)

Dimensions:

1 Initial power on display mode

After the power on indicator flashes 5 times, the activation indicator lights up if the system is activated.

2 Alarm operation

Press the remote controller activation key once, the alarm beeps once, and the activation light goes on.

Press the remote controller deactivation key once, the alarm beeps twice, and the activation light goes off.

3 Alarm Operation

In any mode, if the 24-hour zone sensor is triggered, the alarm siren and light will go off for 30 seconds.

After the alarm is activated for 15 seconds, is any zone sensor is triggered, the alarm siren and/or the light will go off. For example, when the alarm is set for vibration detection, the first trigger sets off 3beeps,if there is another trigger within 90 seconds, the alarm siren and light will both go off.
