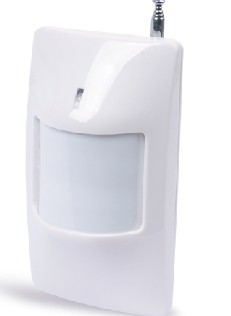

Model: CJ-AD-3F

Feature

1 Shell with ABS material

2 LED NO/OFF optional

3 Automatic Temperature Compensation

4 SMT adopted, anti-RFI & anti-EMI

5 Alarm Output Normal Open and Close Optional

Specification

1 Working Voltage: DC3V with battery

2 Standby Current: ≤50uA

3 Alarm Current: 《20mA

4 Operating Temperature: -10℃ ～+50℃

5 Installation: wall-mounting

6 Installation Heights: about 2.2m

7 Detecting Direction: 12m

8 Detecting Angle: 110℃

9 Item Dimension: 107*59*39.5mm

10 Transmitting Direction: ≤150
