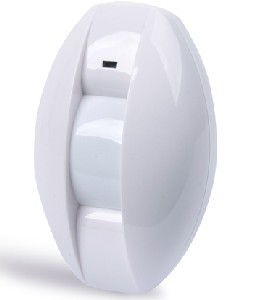

Model: CJ-AD-8E

Feature

Direction identify technique Auto temperature compensation Exit direction optional SMT adopted, anti-RFI& anti-EMI Direction function optional Dynamic threshold adjusting technique to avoid interference Alarm output NO/NC optional

Specification

1 Operating voltage: DC9-16V

2Comsumption current: less than 18mA (DC12V)

3 Operating temperature: -10℃ ～+50℃

4 Self-check: about 60s

5 Installation means: wall-mounted or ceiling mounted

6 Installation height: 1.7M-2.5M (wall-mounted)

7 Detecting distance: diameter 9m (wall mounted)

8 Detecting angle: 15 degree

9 Alarm output: NC/NO optional, connection is DC28V,100mA

10 Alarm indicators: red LED

11 Sensor: dual heat released sensor

12 Anti-RFI: 10MHz-1GHz 20V/m

13 Anti-dismantle switch: NC, connection is DC28V,100mA

14 Dimensions: 110*69.5*40mm
