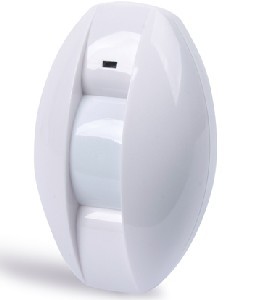

Model: CJ-AD-8D

Feature

1 Shell with ABS material

2 LED NO/OFF optional

3 Automatic temperature compensation

4 SMT adopted, anti-RFI & anti-EMI

5 Alarm Output Normal Open and Close Optional

Specification

1 Working Voltage: DC9-16V

2 Consume Current: ≤18mA (DC12V)

3 Operating Temperature: -10℃ ～+50℃

4 Installation: wall-mounting and ceiling-mounting

5 Installation Height: about 2.5-6m (ceiling), 1.7-2.5m (with wall)

6 Detecting Direction: 12m

7 Detecting Angle: 15℃

8 Self-check: 50s

9 Indication Right: red LED

10 Alarm Output: normal open and close optional, contact point is DC28V, 100mA

11 Tamper: normal close, contact point is DC28V,100mA

12 Item Dimension: 110*69.5*40mm
