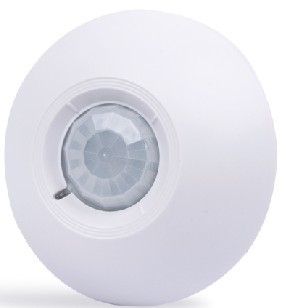

Model: CJ-AD-6

Feature

Ceiling mounted, Fireproof ABS housing/LED ON/OFF optional/automatic temperature Compensation/SMT adopted, anti-RFI & anti-EMI/puLSe count optional/alarm output N.C./ N.O. optional

Specification

1 operating voltage: DC 9-16V

2 consumption current: ≤18mA(DC12V)

3 operating temp.: -10℃ ～+50℃

4 installation mode: ceiling mounted

5 installation height: about 2.5~6m

6 detecting distance: φ8m

7 detecting angle: 360 degrees

8 alarm output: N.O./ N.C. optional

9 Anti-dismantle switch: N.C.

10 dimension: φ106*36mm
