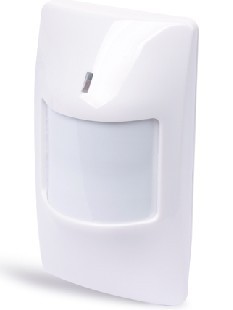

Model: CJ-AD-3

Feature

1 Shell with ABS material

2 LED NO/OFF optional

3 Automatic Temperature Compensation

4 SMT adopted, anti-RFI & anti-EMI

5 Alarm Output Normal Open and Close Optional

Specification

1 Working Voltage: DC9-16V

2 Consume Current: ≤18mA (DC12V)

3 Operating Temperature: -10℃ ～+50℃

4 Installation: wall-mounting

5 Installation Heights: about 2.2m

6 Detecting Direction: 12m

7 Detecting Angle: 110℃

8 Alarm Output: normal open and close optional

9 Tamper: normal close

10 Item Demission: 107*59*39.5mm
