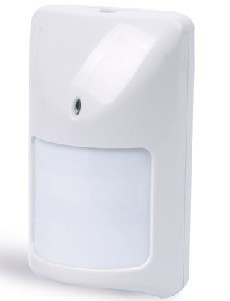

Model: CJ-AD-1

Feature

1 Fire-proof ABS housing

2 LED ON/OFF optional

3 Automatic temperature compensation

4 SMT adopted, anti-RFI & anti-EMI

5 Pulse count optional, can be installed in different environment

6 Dynamic threshold adjusting technique

7 Alarm output NO/NC optional

Specification

1 Operating voltage: DC9-16V

2 Consumption current: less than 18mA(DC12V)

3 Operating temperature：-10℃ ～+50℃

4 Installation means: wall-mounted

5 Mounted heights: 2.2m

6 Detecting distance: about 12m

7 Detecting angle:110 degree

8 Alarm output: NO/NC optional

9 Anti-dismantle switch: NC

10 Dimension: 107*59*39.5mm
