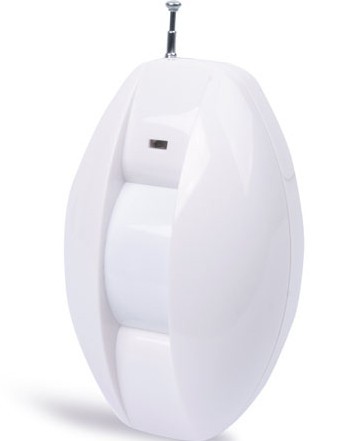

Model: CJ-AD-8EF

Feature

Adopt MCU processing intelligent orientation indentificated technology. Automatic Temperature Compensation Option the Alarm Direction by self Adjust Time of Alarm Delay by self Radio-frequency Immunity (20V/m -1GHz) Adopt SMT, Anti-RFI & Anti-EMI

Specification

1 Operating Inputting: DC3V (2 batteries with 1.5V) Standby

2 Current: ≤20uA

3 Alarm Current: ≤10mA

4 Battery Life: one year

5 Detect Distance: 9 m

6 Detect Angle: 15℃

7 Self-check Time:60s

8 Alarm Indication: Alarm direction with Red LED, out direction with Green LED 9 Under voltage Indication: Yellow LED

10 Working Temperature: -10℃ ～ +50℃

11 Humidity Lever: 95%RH (without solidify)

12 Install Height: 1.7-2.5m

13 Transmitting Distance: 150m without block

14 Size: 110*69.5*40mm
