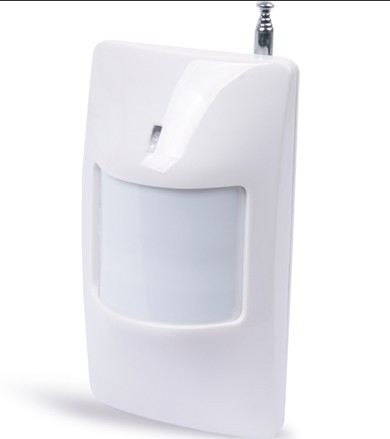

Model: CJ-AD-5F

Feature

Wireless signal transmitting Low power alarm Automatic temperature compensation ASIC adopted Low consumption to ensure long battery life SMT adopted, anti-RFI & anti-EMI

Specification

1 Operating voltage: DC9V battery

2 Consumption current: ≤35uA

3 Alarm current: ≤15mA

4 Operating temperature: -10℃ ～+50℃

5 Battery lives: about 6-12 months

6 Installation means: wall-mounted

7 Installation height: 2m (wall-mounted)

8 Detecting distance: diameter 9m (wall mounted)

9 Detecting angle: 110 degree

10 Dimension：107*59*45mm
