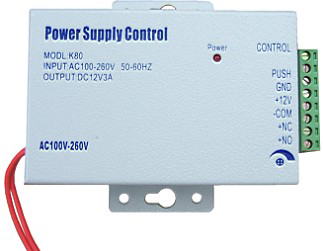

yyjsz1819Switch Power Supply CJ-PS806
 |
| Model: CJ-PS806 |
|
Switch power source operating instruction manual
The power source is small and exquisite , simultaneous remote control opens the door , installation is easy to carry about.
Merit: Voltage range width all can be put into use regularly from 100 V-260V , one by one national power consumption of world voltage , weight suitable are light , transportation is convenient , the disturbance is small, output voltage characteristic property reduces stiffly from carrying idler to being fully loaded with voltage fluctuation only when +/-the temperature that locks, locks up to the electricity rises (compared with labor frequency power source) greatly. Shortcoming:
The component is expensive , assembling handicraft is complicated.
Exchange imports: Standard AC100V-260V 50-60HZ
Direct-current outputs: Stabilivolt DC12V/ 3 A
The direct under the control of electricity is locked up: In case that time lapse controls a circuit , unblanking time may in 0-15, the second is arbitrarily adjustable.
Automation protection function: Think that the power source exports meeting automation protection nothing voltage when short circuit happened in the circumferential circuit.
Outside iron shell dimension 103 mm * 68 mm * 33 mm
Output terminal connection sketch map:
|
