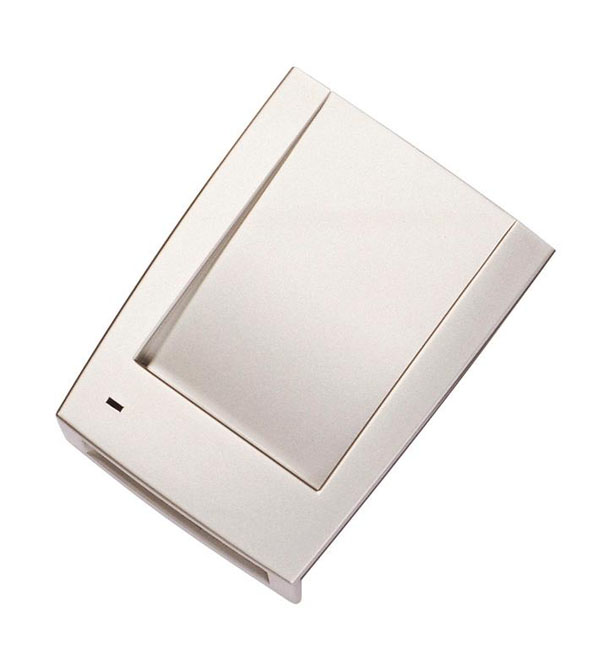

ID/IC USB Interface Card Issuing Device CJ-003

Model: CJ-003



USB Interface Card Issuing Device

Introduction

USB Interface Card Issuing Devices realize the function of transiting the data from reader to PC via USB Port. The user has no need to download any driver program. You just plug it to USB Port for normal working. It cans instead previous PS/2 Interface Issuing Device. If your Computer Keyboard port has no sufficient power, or not convenient for keyboard output, or with broken keyboard, especially Notebook PC has no PS2 Keyboard out, Erfid09B provide ideal solution for above case. Also this type is with the advantage of no Driver, no additional power.

Specification

·        Support Windows98/2000/XP/2003
·        Support EM/ID (125 KHz Frequency) M1 Card
·        Standard PC USB Communication Interface
·        Champagne or Black Color
·        DC 5V working Voltage or Power on USB
·        -10 to 70 C Ambient Temperature
·        Less 100mA Working Current
·        5- 10cm Proximity Reading Range
·        USB Output Format
·        140*100 *30 mm

About Use

Connect USB data wire between Device and PC, after 30 seconds system testing period, then punch the card, and execute the following steps in PC: Start----Program----Accessories----Notepad. Card Number will be showed on Screen automatically Lines (No need press “Enter” for it)
