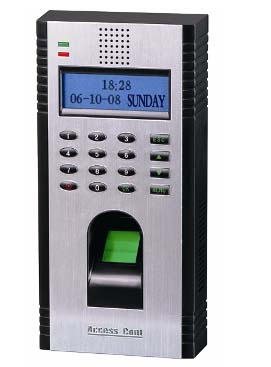

F708 Fingerprint Access Control

Model: F708

Features

F708 is a widely used Access Control in the office. Choosing a lot of stable original parts, strictly follow the national security product standard .F708 is suitable for the entrances and exits of office, factory ,hotel ,school ,etc .All input /output are using anti-jamming protection and over-voltage/circuit protection. The product experiences the strict degradation test before leaving factory, The greatest advantage of F708 is easy to install, with multifunctional & elegant design and reasonable price.

Benefits

· One fingerprint develop the whole world
·
Adopt high reliable industrial component parts and optical sensor, watchdog monitor to avoid unit hang ,unique reset key keeps the unit well work
·
Easy to install all the cable connection EM lock installation are the same to the traditional IC/ID Access control
·
One-way alarm output :dismantlement alarm ,threaten alarm ,unlock illegally alarm , not block alarm

Technical Specifications

· User capacity : 2200
· Transaction capacity : 50000
· Verification mode : 1:1 or 1:N
·
Access Control : 50 Time Zone ,5 Grouping, 10 Combination, Holiday Management ,support many fingerprints access ,support standalone work
· Electric lock control: Directness relay out put 3A/12VDC
· Communicational: TCP/IP or RS232 and RS485
· Keyboard and Display: LCD with 80 character and figure keypad
· Power: 9-24 VDC, stay current: 50MA, work current: 400 MA
· Identification speed: <=2 seconds
· FRR: <=1%
· FAR: <=0.0001%
· Collection station: ZK collection station
· Temperature operating: 0°C - 45°C
· Humidity operating: 20%-80%
· Language: simplified Chinese, traditional Chinese, English, other Languages
· Size: 180(L)*82(W)*55(H)mm
·
Management software: Transaction fingerprint management and Access control attendance options, and network management
· Standard: Wire Doorbell, Wiegand OUT
·
Optional: Webserver, Workcode, RIS,Multi-identification, 9 Digits User ID, Schedule Status, T&A Records.
