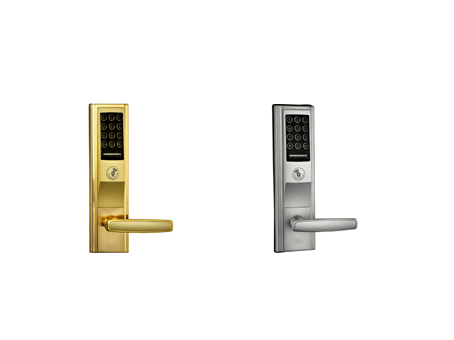

Keypad Lock CJ-KL403/404

Model: CJ-KL403/404

The main functions and performances:

Cade Type: Mifare Induction Card
Password Input by Touching Key Pression
Microwave Induction
The lock opening modes can be set by your choice. Use Mifare cards or passwords separately to open/ Only Mifare cards and password used together could open the locks.
The cards are set by the lock sytem and software is not needed. 2 management cards and 200 cards at most.
The passwords can be modified by your choice. 1 management password and 50 door opening passwords at most.
Messy codes could be used when inputting passwords. 12 digits at most.
You can set the lock in common open state.
Alarm of False Closing
Indication of Lacking of Voltage
Batteries supply the power. External source can be used.

Main Technical Parameters:

Working voltage: 6.0V (4 pieces of No.5 alkaline batteries)
Static power supply: <100μA
Dynamic power supply: <200mA
Lifespan of batteries: 10 months or above
Indication of lacking voltage: 4.5V
Induction distance: >25mm
Working temprature: 0℃—70℃
Working humidity: ≤80%

Mifare Password Electronic Lock Instruction Manual.doc
