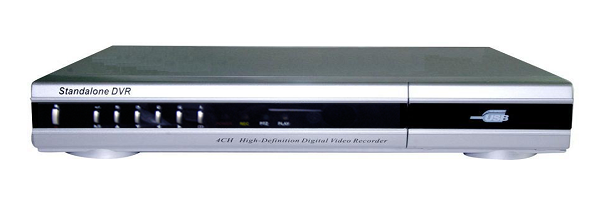

4CH DVR(Model: CJ-DVR904)
Model: CJ-DVR904
Specification
1. Item: Spec.
2. Video signal Format: NTSC/PAL
3. Operation System: Embedded RTOS
4. Video Input: 4 group(1Vp-p75Ω)BNC
5. Display: Full screen, Quad split
6. Audio Input: 1group RCA, support record and Audio simu
7. Video output: 1 group (Monitor Out) BNC
8. Video Contrast: Brightness, Contrast, Hue, Saturation
9. Audio output: 1 group RCA
10. Preview Resolution: NTSC: 120 fps (4 × 30 fps); PAL: 100 fps (4 × 25 fps)
11. Compress Resolution: NTSC(60 fps); PAL(50 fps)
12. Record Mode: Dual Mode (Record/Display)
13. Recording: Manual /Motion Detection /real-time
14. Resolution:
Display: NTSC (640*448); PAL (640*544);
Recording: NTSC (640*224); PAL (640*272);
15. Compression: Modified MJPEG(Normal, High, Highest)
16. HDD: SATA HDD x 1(Manual, cover)
17. Software update: Support U disk update
18. Searching: Mode (By Time/Date, Event); Full Screen (yes)
19. Motion Detection; detection signal off; Automatic Platform; Alarm output; PTZ: yes
20. Operation: Display on the screen immediately
21. Language: Simple Chinese/English
22. PC play back: VVFPlayer
23. Power supply: DC 12V / 3A(AC100V~240V 50/60HZ)
24. Surveillance for system: Recover record mode when power on
25. Measure(mm): 280(W)*240(D)*60(H)
26. Carton Measure(mm): 350(W)*285(D)*100(H)
27. Working temperature: 0℃~60℃
28. Working humidity: 10%~90%
