Model

Description

Specifition

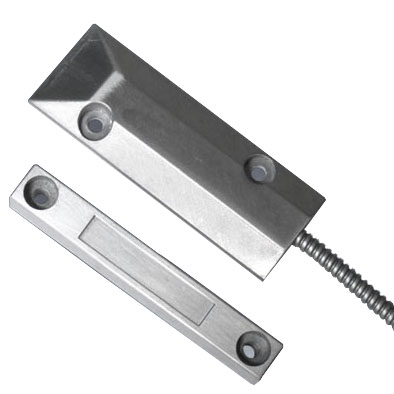

CJ-57

Iron Magnetic Contacts

◆metals shield
◆connecting mode: N.C./ N.O.
◆rated current: 300(mA)
◆rated voltage: 12VDC
◆operating distance: more than 35mm, less than 35mm
◆rated power: 30(W)

CJ-56

Iron Magnetic Contacts

◆ metals shield
◆ connecting mode: N.C./ N.O.
◆ rated current : 500(mA)
◆ rated voltage: 12VDC
◆ operating distance: more than 35mm, less than 60mm
◆ rated power: 10(W)

CJ-36

Round Magnetic Contacts

◆ anti-fire ABS shield
◆ connecting mode: N.C./ N.O.
◆ rated current: 500(mA)
◆ rated  voltage: 12VDC
◆ operating distance: more than 35mm, less than 60mm
◆ rated power: 10W

CJ-39

Hidden Magnetic Contacts

◆ anti-fire ABS shield
◆ connecting mode: N.C./ N.O.
◆ rated current: 100(mA)
◆ rated voltage: 12VDC
◆ operating distance: more than 15mm, less than 25mm
◆ rated power: 20W

CJ-35

Hidden Magnetic Contacts

◆ metals shield anti-fire ABS
◆ connecting mode: N.C./ N.O.
◆ rated current :  100(mA)
◆ rated voltage:  12VDC
◆ operating distance: more than 15mm, less than25mm
◆ rated power: 3(W)

CJ-33

Hidden Magnetic Contacts

◆ metals shield anti-fire ABS
◆ connecting mode: N.C./ N.O.
◆ rated current: 100(mA)
◆ rated voltage: 12VDC
◆ operating distance: more than 15mm, less than 25mm
◆ rated power: 2(W)

CJ-38

Magnetic Contacts

◆ anti-fire ABS shield
◆ connecting mode: N.C./ N.O.
◆ rated current : 100(mA)
◆ rated voltage: 12VDC
◆ operating distance: more than 15mm, less than 25mm

◆ rated power:  20W

CJ-31

Magnetic Contacts

◆ anti-fire ABS shield
◆ connecting mode: N.C./ N.O.
◆ rated current : 100(mA)

◆ rated voltage : 12VDC
◆ operating distance: more than 15mm, less than 25mm
◆ rated power: 3W

CJ-55

Magnetic Contacts for Roll Door

◆ metals shield
◆ connecting mode: N.C./ N.O.
◆ rated current: 500(mA)
◆ rated  voltage: 12VDC
◆ operating distance: more than 35mm, less than90 mm
◆ rated power: 10(W)
